Jul 21st, 2025 | | | | Joined: Sep 2006 Posts: 33 'Bolter | | 'Bolter Joined: Sep 2006 Posts: 33 | Hello,
I have a 1950 3100 with a stock rear end. I am replacing the brakes and I have a question since my truck hasn't been on the road since 1991. Can someone take some pictures of there stock brakes and send them to me or post them? I'm not sure how the e-brakes hook up. I'm sure they are simple, but most of the original parts are gone. I have bought new springs and such but can't remember how the e-brake was hooked up. I have looked at the 1950 shop manual, and the photo's in there are a little vague. Any help would be appreciated.
Mike | | | | | Joined: Mar 2002 Posts: 990 Member | | Member Joined: Mar 2002 Posts: 990 | Anyone? Got a wheel off to show him? | | | | | Joined: Sep 2006 Posts: 33 'Bolter | | 'Bolter Joined: Sep 2006 Posts: 33 | Anyone? At all? :confused: | | | | | Joined: Sep 2005 Posts: 1,028 'Bolter | | 'Bolter Joined: Sep 2005 Posts: 1,028 | Mike I have a lot of pics of my rear brakes I posted on the link below in the album titled brakes. I have a 53 3600 which I know is different but I hope it might help.
Rich | | | | | Joined: Sep 2006 Posts: 33 'Bolter | | 'Bolter Joined: Sep 2006 Posts: 33 | Thank You for the info guys. The pictures are of a different type, they are new style, I have the old huck setup, brake adjusters are on the wheel cylinders. Anyone have shots of the huck style they would like to share with us? and Thank You again for responding.  Mike | | | | | Joined: Dec 2005 Posts: 2,554 'Bolter | | 'Bolter Joined: Dec 2005 Posts: 2,554 | Sorry,I did'nt realize you have the huck setup.I can't help you with any pictures.
1951 3100 Chevrolet1951 Chevrolet Suburban CarryallImage"A house is built with boards and beams. A home is built with love and dreams." "Look deep before you leap !!!" / "Everything is Everything" "If I say a mouse can pull a house, hitch him up"
| | | | | Joined: Mar 2002 Posts: 9,112 'Bolter | | 'Bolter Joined: Mar 2002 Posts: 9,112 | Mike,
do you have the Chev Truck Shop manual? There are a number of photos in there of the Huck rear brakes including one illustrating the emerg brake adjustment. What details are you missing? | | | | | Joined: Sep 2006 Posts: 33 'Bolter | | 'Bolter Joined: Sep 2006 Posts: 33 | Yes, I have the chevy truck shop manual, but the pics don't really show what I need. What connects the e-brake cable to the brake shoe?
Mike | | | | | Joined: Jul 2004 Posts: 5,708 'Bolter | | 'Bolter Joined: Jul 2004 Posts: 5,708 | | | | | | Joined: Mar 2002 Posts: 9,112 'Bolter | | 'Bolter Joined: Mar 2002 Posts: 9,112 | Mike,
does this make sense to you now? If not, I can explain. The setup is really quite simple.

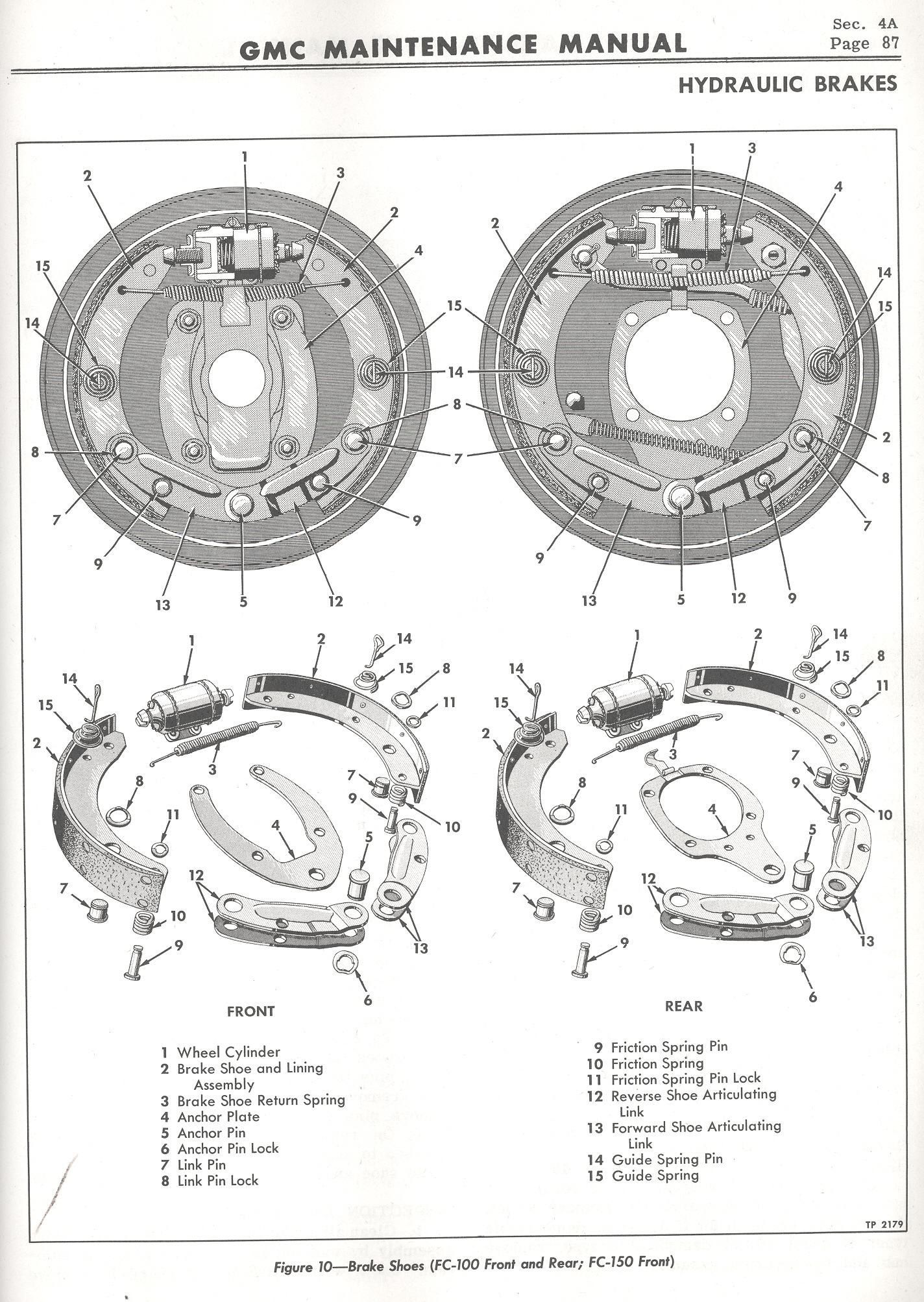

Fred | | | | | Joined: Sep 2006 Posts: 33 'Bolter | | 'Bolter Joined: Sep 2006 Posts: 33 | Yes, these are exactly what I was looking for. The GMC diagram is closer to what I have. The 1 ton diagram does not have the cone shaped springs that help hold the brake shoe on. But it does have the picture of the parts I need. Part #5.150-extension, part #5.151-spring, part #5.149-lever, part #5.158-bolt, part #8.932-l/washer, part #8.917-l/nut are the parts I am looking for. Does anybody know where to get these? Guys, I sincerely Thank You for your help! Mike | | | | | Joined: Mar 2002 Posts: 9,112 'Bolter | | 'Bolter Joined: Mar 2002 Posts: 9,112 | Can someone tell me why, when I click on the diagram from the oldgmctrucks site, I end up with a small half page image that is unreadable. I am sure this is not the way it behaves for everyone. | | | | | Joined: Jul 2004 Posts: 5,708 'Bolter | | 'Bolter Joined: Jul 2004 Posts: 5,708 | truckernix,
If you hold your cursor on the document for a moment, icons will appear. The icon in the lower right will full size the page with a click of the mouse....
Stuart | | | | | Joined: Mar 2002 Posts: 9,112 'Bolter | | 'Bolter Joined: Mar 2002 Posts: 9,112 | atomarc,
thanks, that did the trick.
Fred | | |
|
|
